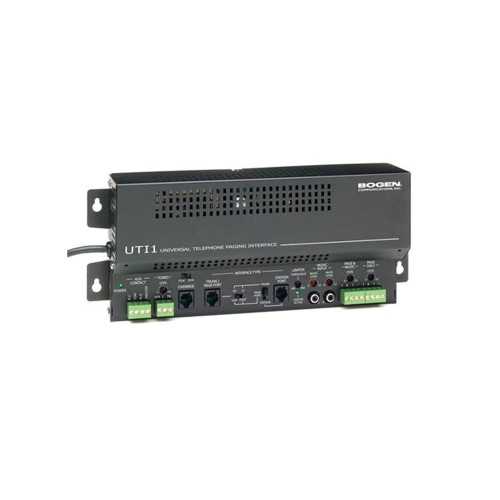

Bogen Single Zone Paging Controller

Bogen Wall Rack Mount Single Zone Paging Controller System Interface BlackBogen single-zone paging universal telephone interface. Compatible with all standard analog port types. Includes 2 audio outputs with level controls, each of which can provide audio for 150 Bogen self-amplified speakers. Telephone interfaces: loop start trunk, ground start trunk, station access (analog ring-up), page port contact closure activation, page port voice activation. Simple 2-switch interface setup. Programmable activation of AUX contacts. C-form contact. High-impedance transformer isolated background music inputs with volume control. Override paging (using loop start trunk or page port contact closure activation) with zone group. Night ringer (contact closure activation). Tone triggers (tone and duration selectable, closure activated) with individual zone groups. Tone burst (2 to 7 seconds), chime or slow whoop. Non-volatile memory for setup data (nobackup battery required). Setup Tone to assistin volume setting. Pluggable terminal strips. Microcontroller-based operation. DTMF programming. DTMF Block to help suppress DTMF tones over paging system. Programmable timers control page duration (station and trunk). Wall- or Rack-mountable. 2 Year manufacturers warranty. plus 20 Bogen power units. Size: 15Lx 8.5Wx 6.5H. Weight: 6.7 lbs. Color: Black. RoHS Compliant: No. Type of Packaging: White Box. Recycled Packaging: Yes. Country of Origin: Taiwan.

Programmable timers control page duration.

Simple 2-switch interface setup.

Wall- or Rack-mountable.

Warranty 2 Year.
